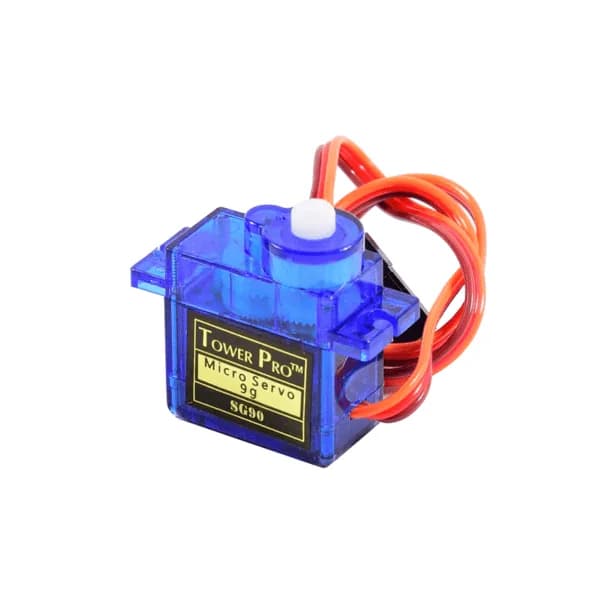

SG90 9g Micro Servo

SG90 9g Micro Servo

Add it to your enquiry and our team will send you a quote.

Available to order

  • Send your enquiry and we reply with a written quote.
  • The quote confirms price, delivery and lead time. Terms
  • Returns follow our Return policy.

Description

SG90 90°-180°(plastic gear)
Dimension : 22.8mm x 12.2mm x 28.5mm
Stall Torque : 1.8kg/cm(4.8V )2.2kg/cm(6V)
Temperature Range : 0 degree to 55 degree
Operating Speed : 0.1sec/60degree(4.8v),
0.08sec/60degree(6v)
Dead Band Width : 5 usec
Operation Voltage : 4.8 - 6Volts
Motor Type : coreless motor
Gear Type : PLastic gear
Connector Wire Length : 175mm

Specifications

SKU
MES-166
