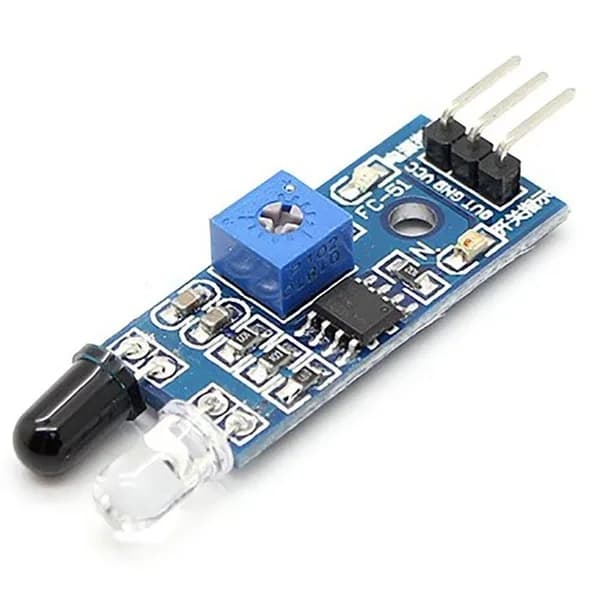

3pin IR Infrared Obstacle Avoidance Sensor Module
Add it to your enquiry and our team will send you a quote.
Available to order
- Send your enquiry and we reply with a written quote.
- The quote confirms price, delivery and lead time. Terms
- Returns follow our Return policy.
Description
Effective distance: 2-30cm Working voltage: 3.3V-5V Detection angle: 35° Circuit board size: 3.2cm*1.4cm The comparator uses LM393 for stable operation The module can be powered by a 3-5 V DC power supply. When the power is turned on, the red power indicator light lights up. The detection distance of this sensor can be adjusted by a potentiometer, with characteristics such as low interference, easy assembly, and easy use. It can be widely used in robot obstacle avoidance, obstacle avoidance cars, assembly line counting, black and white line tracking, and many other occasions.
